>It has fishion design.
>It has excellent scanning performance with 300,000 pixels camera.
>It can scan 1D and 2D barcodes with high performance MCU.
>It is convenient to use with rotatable design.
>It supports scanning OCR.
Introduction

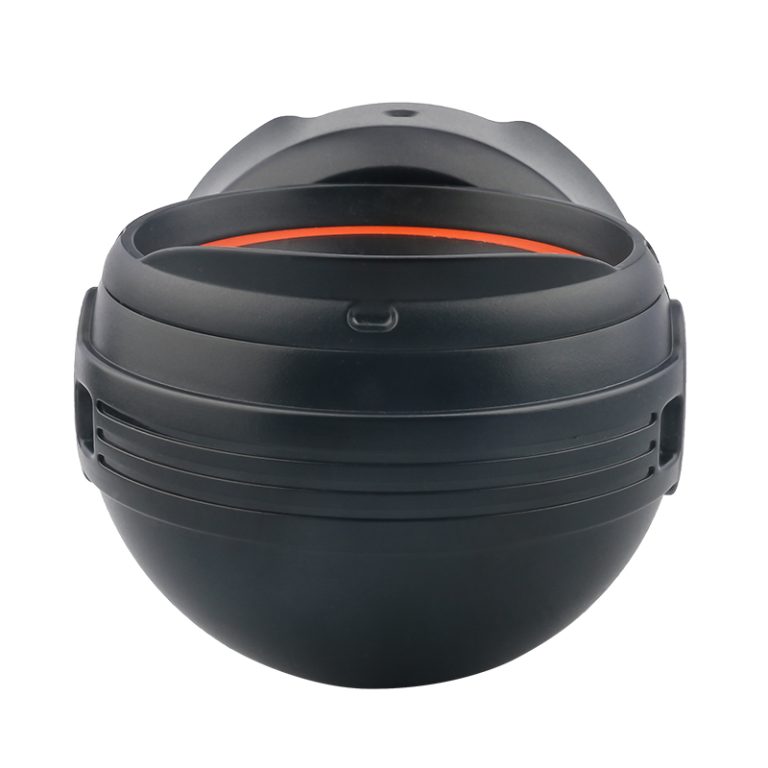

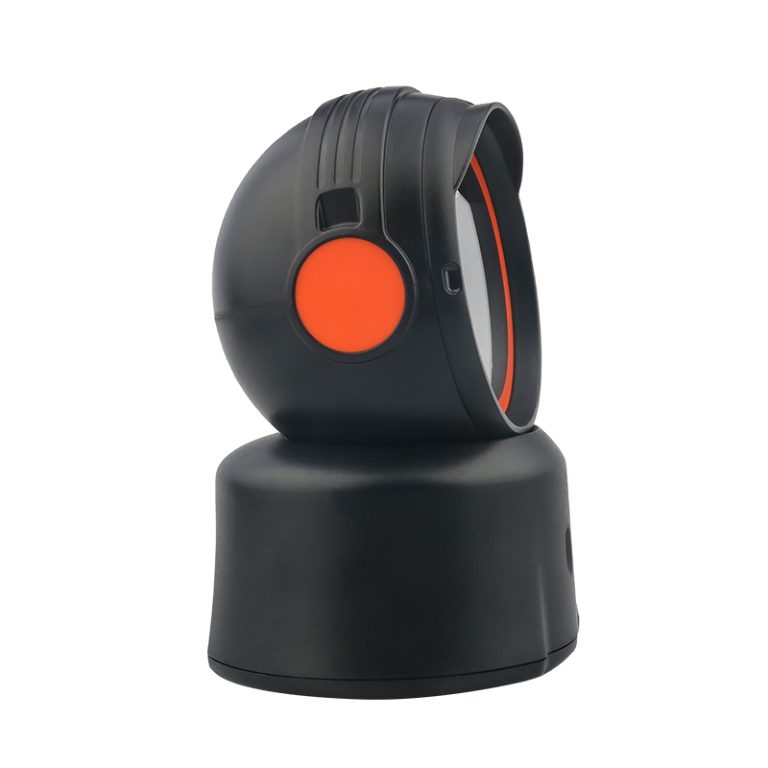

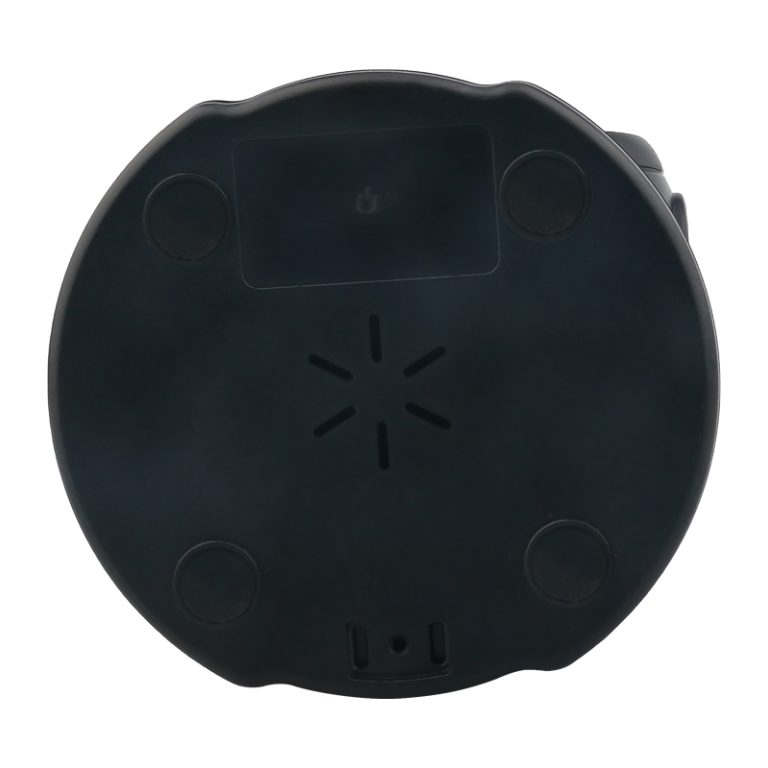

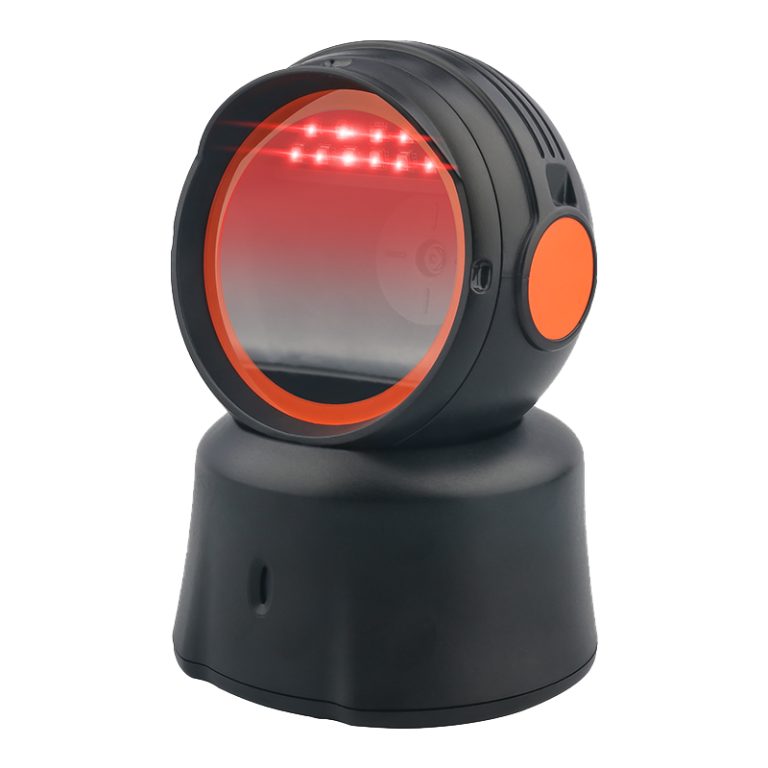

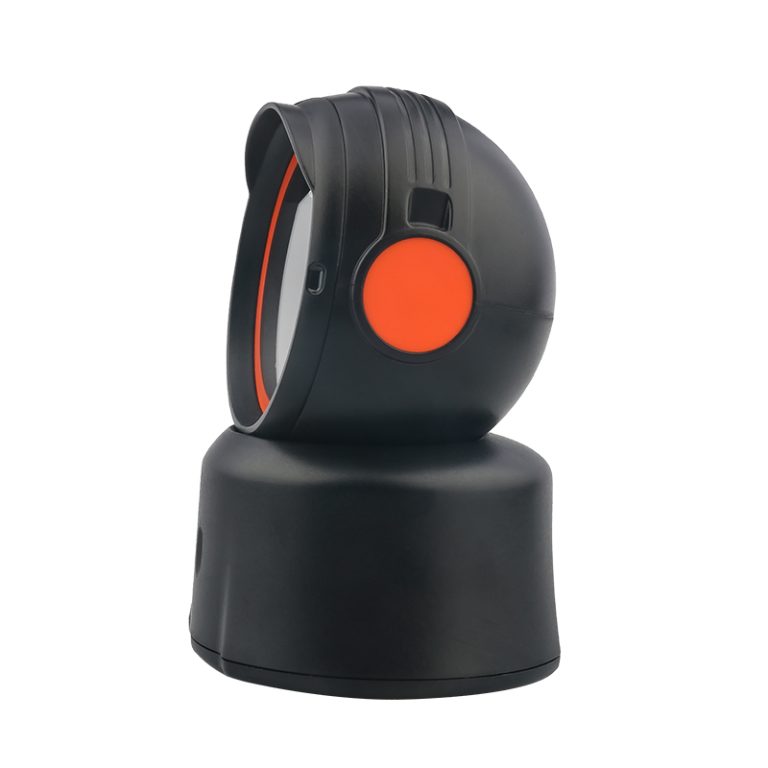

HP6211 is a desktop 2D barcode scanner. It can scan barcodes on different media such as paper, goods and screens with advanced CMOS image recognition technology and intelligent image recognition system. The camera is 300,000 pixels. It can be used in high-traffic retail cashier environments, suitable for large supermarkets, department stores, convenience stores, pharmacies, tobacco hotels and grocery stores, etc with classic and stylish modern design and powerful imaging functions.
Product Features
>It has fishion design.
>It has excellent scanning performance with 300,000 pixels camera.
>It can scan 1D and 2D barcodes with high performance MCU.
>It is convenient to use with rotatable design.
>It supports scanning OCR.
Performance
| Communication Mode | USB（USB-KBW，USB-COM），RS232 |
| Sensor | CMOS, Global Shutter |
| Pixel | 300,000（640*480） |
| Light | Red LED |
| Reading Precision | ≥5mil/0.127mm（PCS90%,CODE 39） |
| Decoding Speed | 65CM/S |
| Reading Mode | Continuous, Induction, Command Control |
| Prompt Mode | Buzzer, LED |
| Reading Perspective | H41° * V31° * D50° |
| Reading Angle | Roll: ±360°，Pitch:±65°，Skew: ±60°
CODE39,10mil/0.25mm,PCS90% (Test Conditions) |
| Print Constrast | ≥25% |
| Ambient Illumination | Dark Environment，Indoor Natural Light |
| Code System | 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5）,Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)，China Post, Tepepen, GS1 Composite etc.
2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, Chinese ID Card OCR, etc. |
Mechanical/Electrical Parameters
| Weight | 262g (Without Wire) |
| Dimension | L87.9mm * W93.9mm * H138.1mm |
| Wire Length | 1.8 Meters |
| Port Type | RJ45 10P10C Connector |
| Power Input | DC 5V 1A |
| Current | 280mA（Average Work） |
Working Environment
| Working Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Working Humidity | 5% to 95%（Non-Condensing） |
| Transportation Vibration Test | 10H@125RPM |
Spare Part List
| Cable | USB: It is used for USB communication with connecting barcode scanner and host. |
| RS232 (optional): It is used for serial communication with connecting barcode scanner and host. DC power supply head is provided as well. | |
| USB Power Cable (optional): It is used for serial port power supply with connecting barcode scanner and host. | |
| Power Adapter (optional) | Output: DC5V 1A, Input: AC100~240V 50~60Hz. It can be used for serial power supply. |
Depth of Field
| Barcode Type | Barcode Density | Minimum | Maximum |
| Code 39 | 0.25mm(10mil) | 20mm | 90mm |
| UPC/EAN | 0.33mm(13mil) | 30mm | 100mm |
| QR Code | 20.0mil | 20mm | 110mm |
| Data Matrix | 20mil | 10mm | 120mm |
| PDF 417 | 10mil | 20mm | 110mm |
| WeChat Payment Code | 6 inch | 20mm | 200mm |
| Alipay Payment Code | 6 inch | 20mm | 210mm |
（Testing Conditions: Environment Temperature = 24℃, Ambient Light Illumination = 300LUX）
