>It is anti-drop and anti-vibration with highly integrated two-dimensional decoding structure.
>It can easily identify all mainstream 1D and 2D barcodes in the market with high-performance MCU.
>It has excellent scanning performance with 300,000 pixels camera.
>It can read barcodes above 3MIL to meet daily scanning needs.
>The outdoor transmission distance can achieve 60 meters with wireless 2.4G transmission technology.
>It supports HID, SPP and BLE modes with Bluetooth 4.2 technology.
>It supports a variety of working modes (manual, induction, Continuous) to meet different reading needs.
>It supports instant mode and storage mode. It can store 20,000 barcodes.
>It supports online update and secondary development.
Introduction

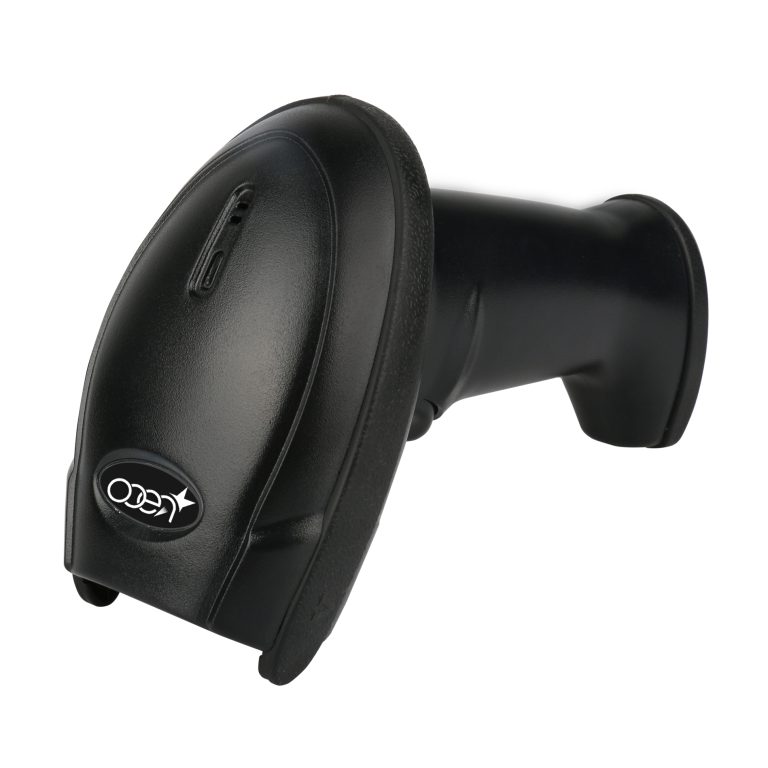

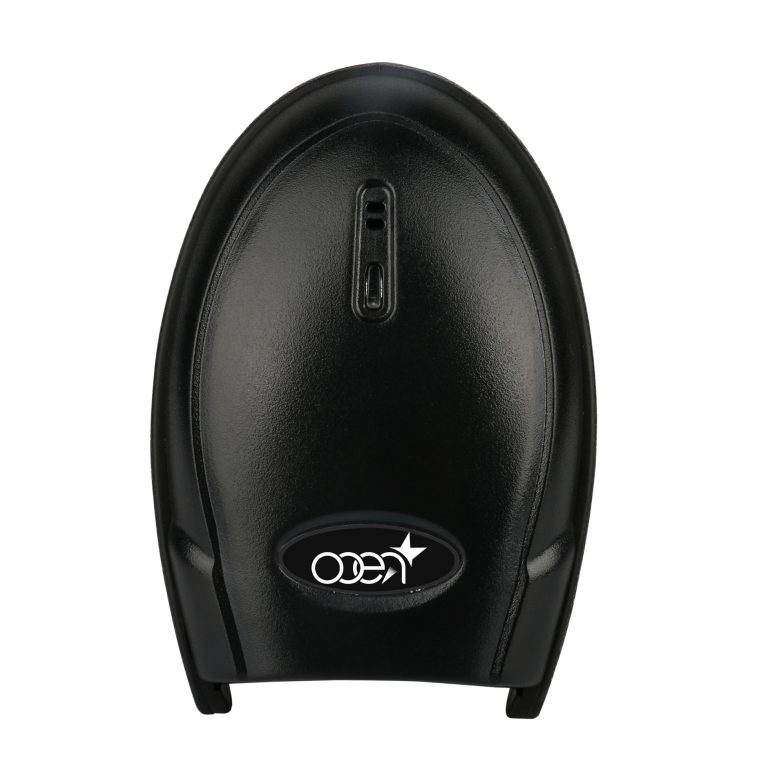

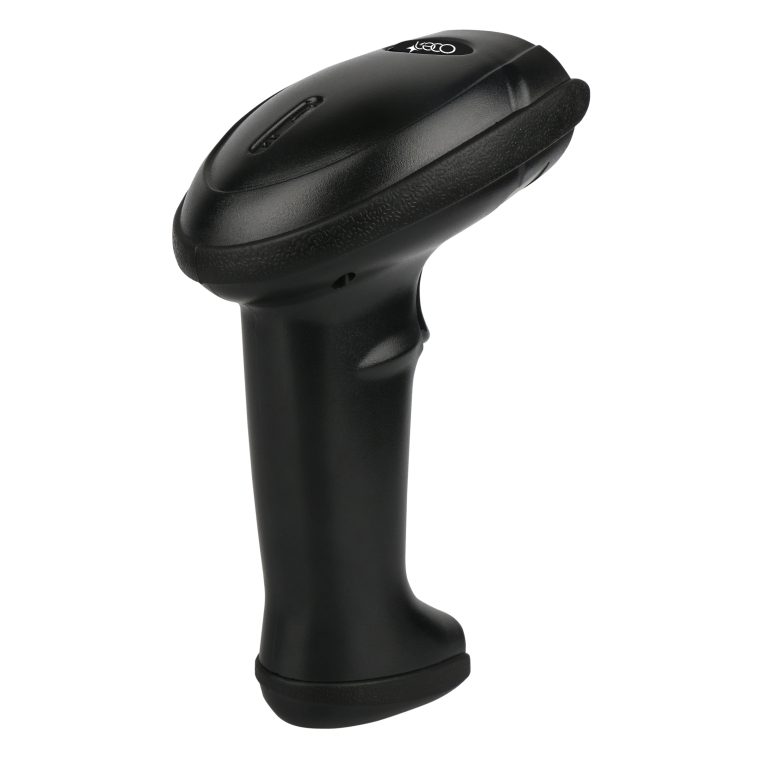

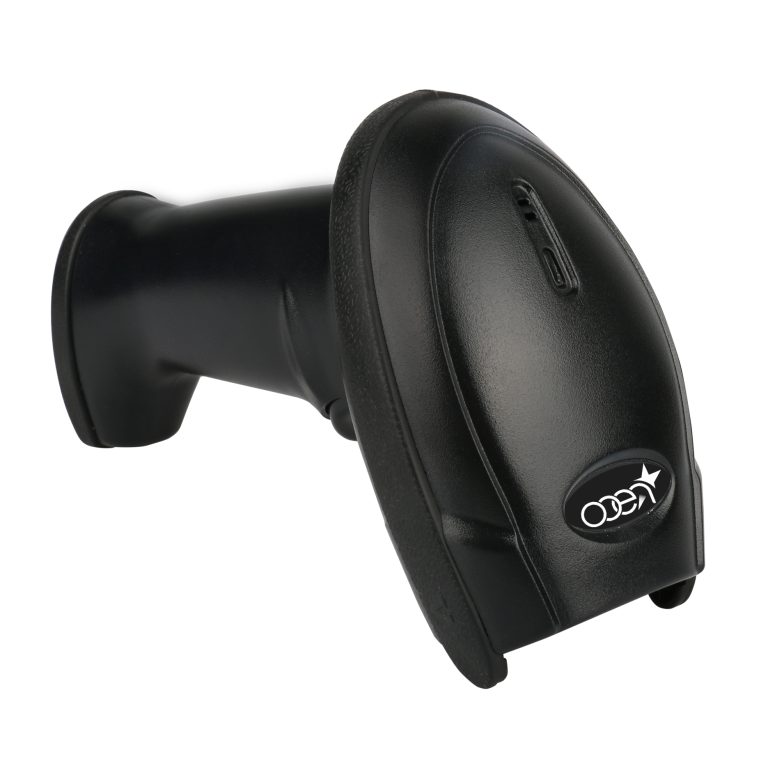

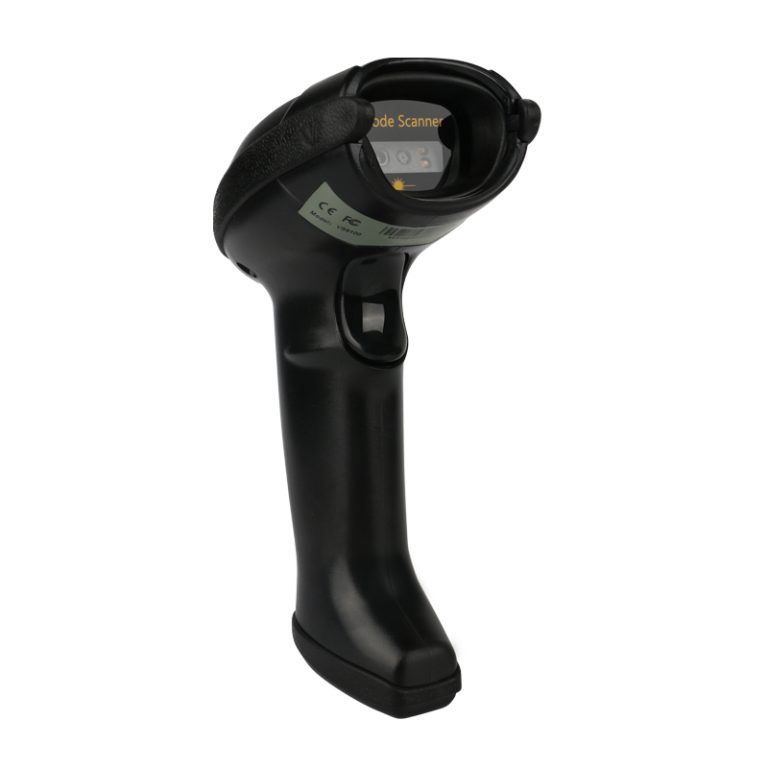

HS2604G-2D is an industrial handheld wireless 2D barcode scanner. It can scan barcodes on media such as paper, commodities and screens with excellent reading performance. This product uses wireless 2.4G transmission technology. The outdoor transmission distance can achieve 60 meters with 2.4G mode. The scanner is mainly used for mobile payment, supermarket and stocktaking.
Product Features
>It is anti-drop and anti-vibration with highly integrated two-dimensional decoding structure.
>It can easily identify all mainstream 1D and 2D barcodes in the market with high-performance MCU.
>It has excellent scanning performance with 300,000 pixels camera.
>It can read barcodes above 3MIL to meet daily scanning needs.
>The outdoor transmission distance can achieve 60 meters with wireless 2.4G transmission technology.
>It supports HID, SPP and BLE modes with Bluetooth 4.2 technology.
>It supports a variety of working modes (manual, induction, Continuous) to meet different reading needs.
>It supports instant mode and storage mode. It can store 20,000 barcodes.
>It supports online update and secondary development.
Performance
| Communication Mode | USB (USB-KBW, USB-COM), wireless 2.4G |
| Sensor | CMOS |
| Pixel | 300000 pixels，640*480 |
| Light | White LED |
| Reading Precision | ≥3mil/0.076mm（PCS90%,CODE 39） |
| Depth of Field | 10mm~550mm |
| Decoding speed | 65CM/S |
| Reading Mode | Manual, Continuous, Induction |
| Prompt Mode | LED, Buzzer |
| Reading Perspective | H41° * V 31° |
| Test Conditions | CODE39,10mil/0.25mm,PCS90% |
| Reading Angle | Roll: ±360°, Pitch: ±60°, Skew: ±55° |
| Print Contrast | ≥15% |
| Ambient Illumination | Dark Environment, Indoor Natural Light |
| Code System | 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5）,Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)，China Post, Tepepen, Febraban，GS1 Composite etc.
2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, etc. |
Wireless Parameters
| Wireless Communication Mode | Synchronization mode, storage mode |
| Method of Communication | USB(USB-KBW，USB-COM），wireless 2.4G， |
| Wireless Standard | 2.4GHZ（ISM frequency band） |
| Transmit Distance | ≥60meters 2.4G; |
| Storage Capacity | 350Kb（over 20,000 Product code） |
| Battery Capacity | 2000mAh |
| Charging Time | About 4.5 hours(5V@1000mA) |
| Continuous Scan Time | ≥16 Hours |
| Standby Time | ≥4 Weeks |
| Support system | Windows，Mac OS，IOS, Linux，Unix，Android |
Mechanical/Electrical Parameters
| Product Weight | 205g (including wire) |
| Packed Weight | 360g (USB) |
| Appearance Dimension | L175.5mm * W 72.5mm * H102.5mm |
| Packed Dimension | L195mm * W105mm * H80mm |
| Wire Length | 1.5 meters |
| Interface Type | USB (Type B) |
| Working Voltage | DC 5V 1A |
| Current | 200mA（Average Work） |
Working Environment
| Working Temperature | 0℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Working Humidity | 5% to 95%（Non-Condensing ） |
| Transportation Vibration Test | 10H@125RPM |
Spare Parts List
| Cable | Used for charging and communication with connecting scanner and host. |
| Dongle | Used to transmit data with host. |
| Operation Guide | Used for general settings. |
Depth of Field
| Barcode Type | Barcode Density | Minimum | Maximum |
| Code 39 | 0.1mm(4mil) | 40mm | 75mm |
| Code 39 | 0.25mm(10mil) | 20mm | 200mm |
| Code 39 | 1mm(40mil) | 105mm | 550mm |
| UPC/EAN | 0.33mm(13mil) | 30mm | 260mm |
| QR Code | 20.0mil | 10mm | 165mm |
| Data Matrix | 10mil | 30mm | 100mm |
| PDF 417 | 6.8mil | 20mm | 140mm |
(Testing Conditions: Room Temperature 24℃ Ambient Light Illumination 300LUX)
