Introduction

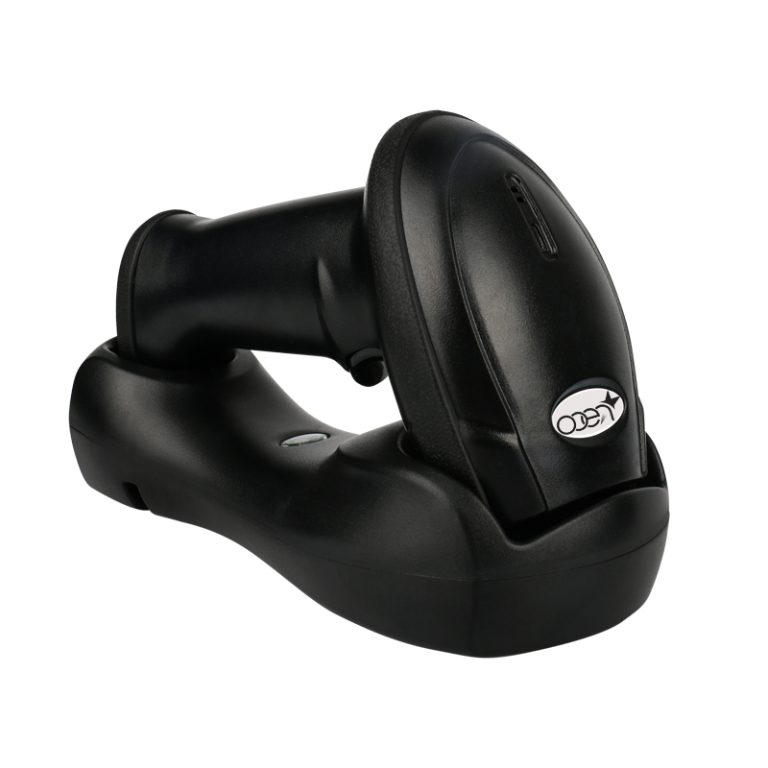

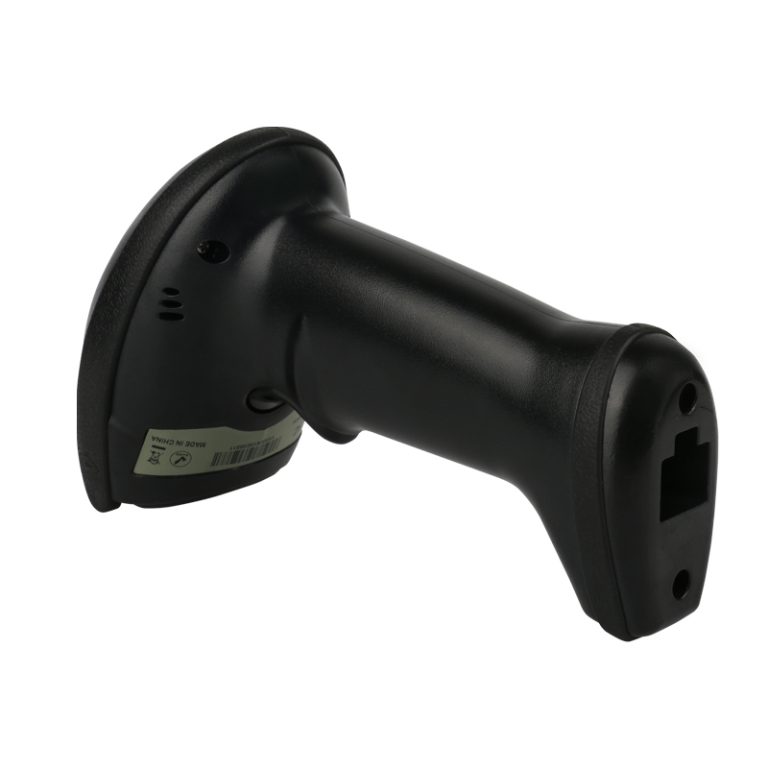

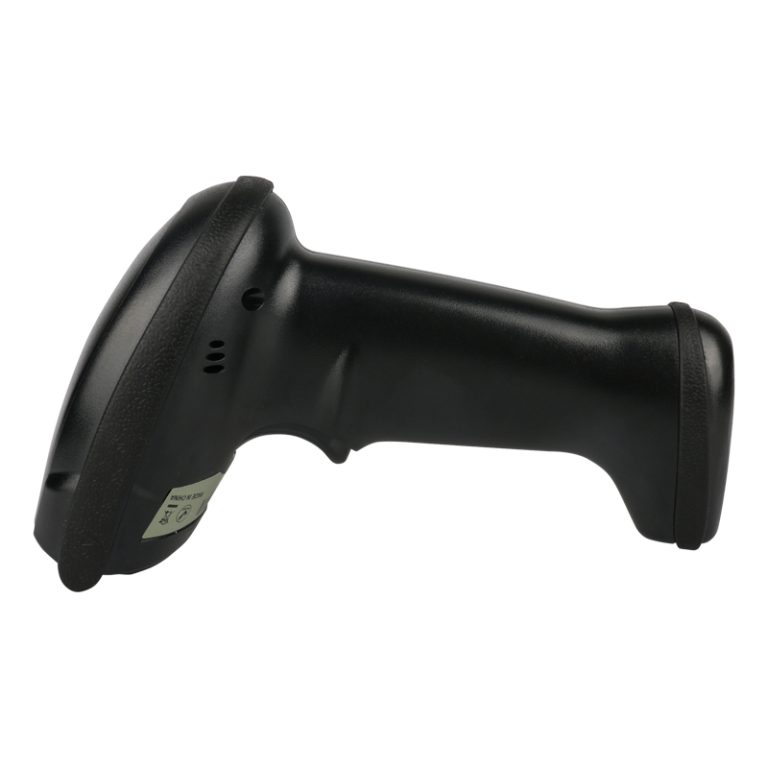

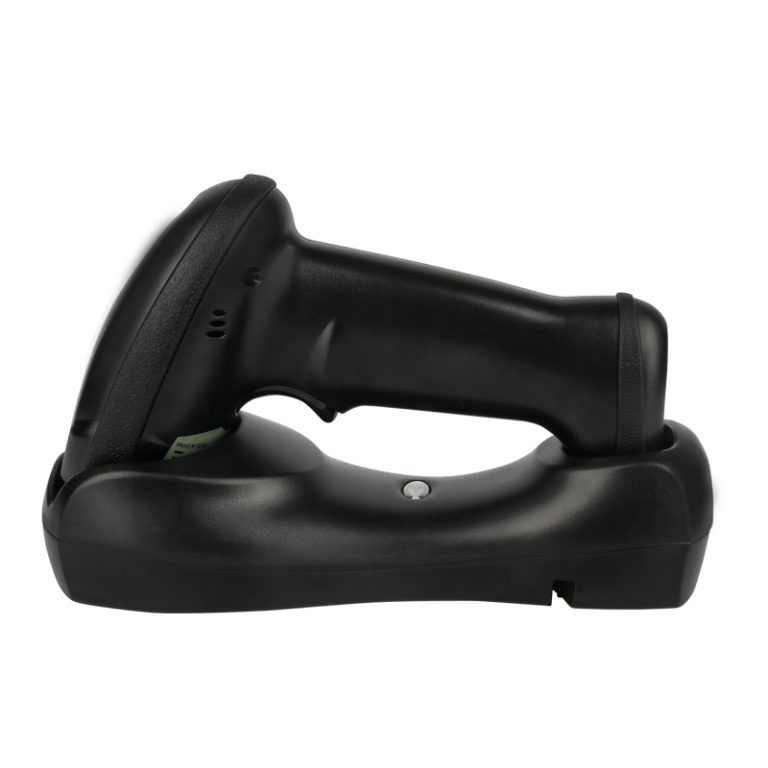

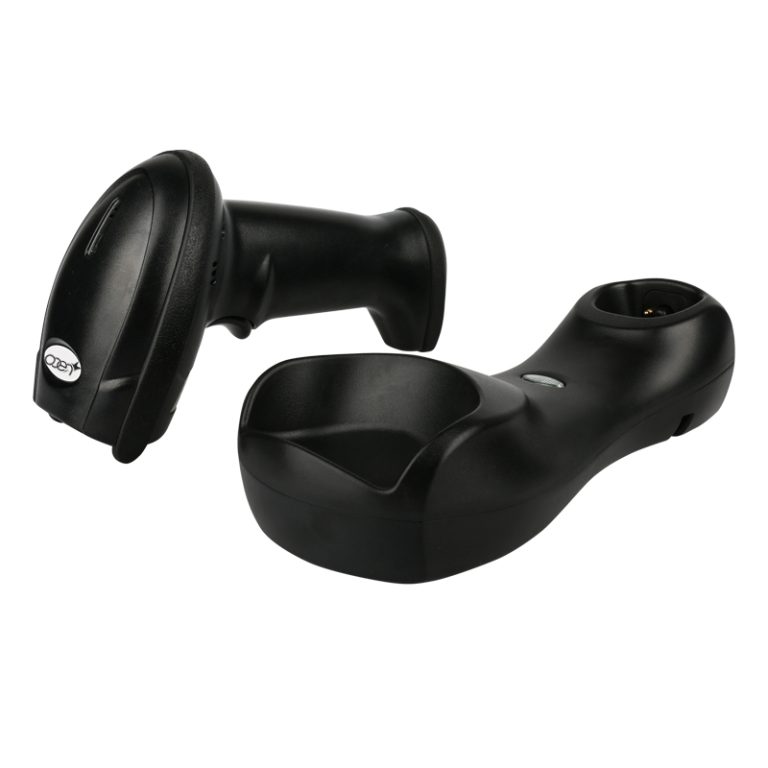

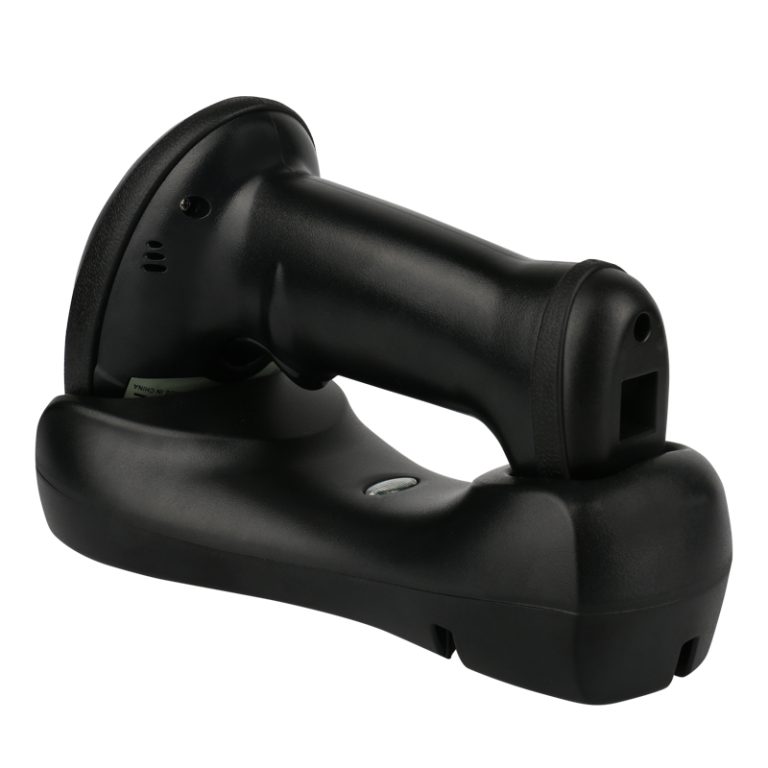

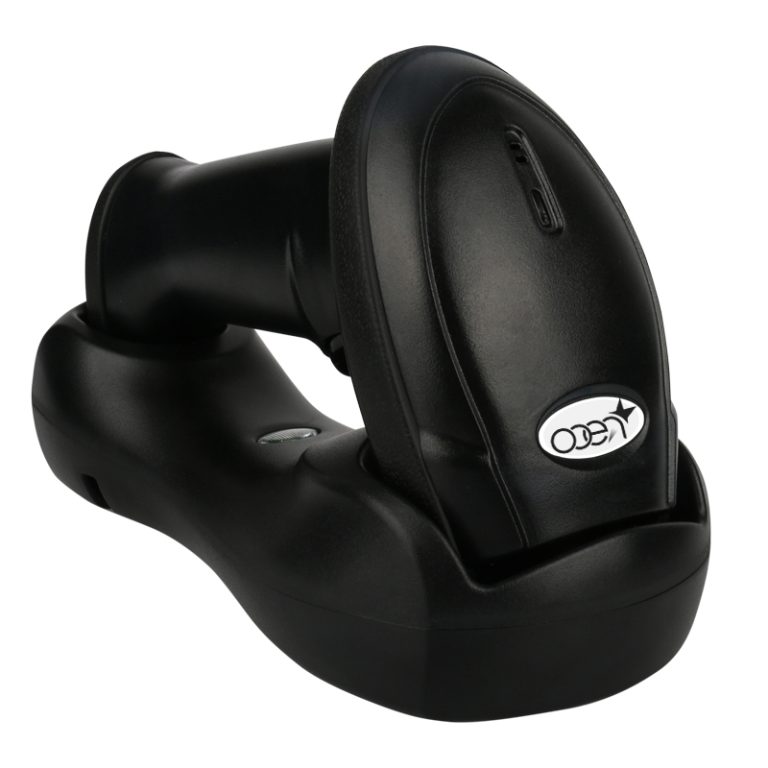

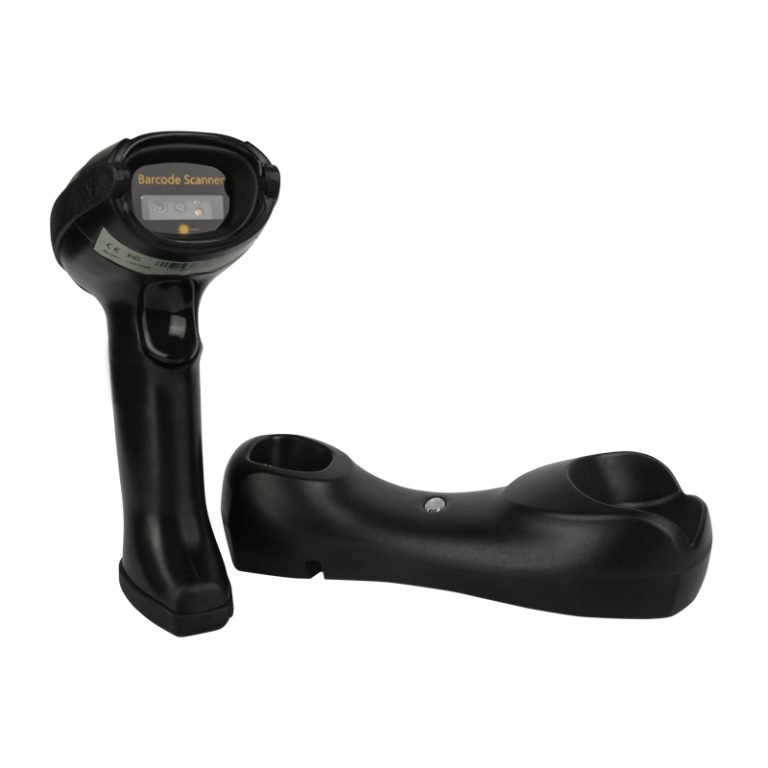

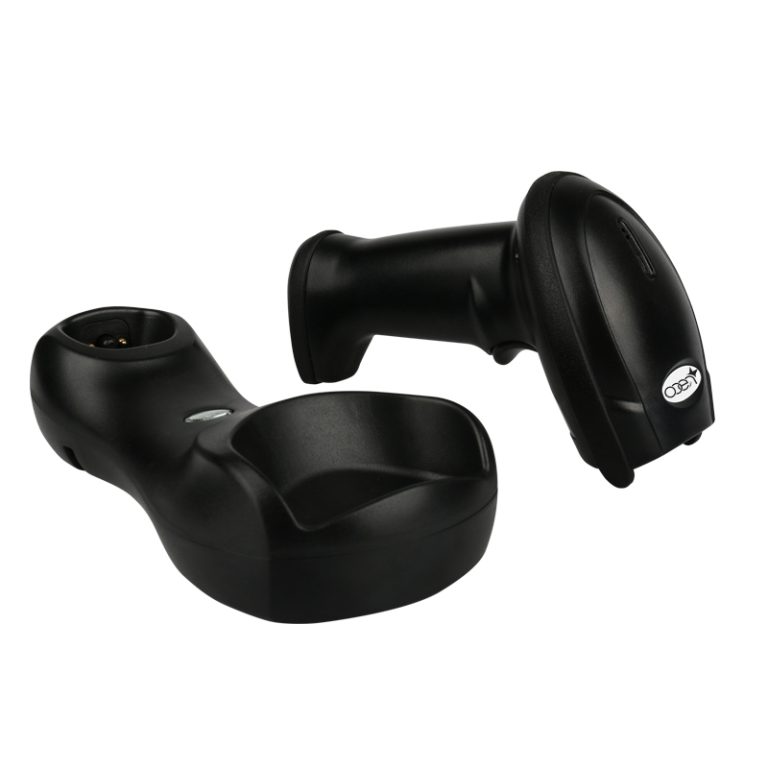

HS2604GD-2D is an industrial handheld two-dimensional wireless barcode scanner with excellent reading performance and can easily read barcodes on different media such as paper, goods and screens. The product uses enhanced wireless 2.4G transmission technology, and the effective distance of the outdoor open environment can reach more than 60 meters, and can support both wired and wireless transmission mode. Can be mainly used in mobile phone payment, commodity barcode scanning, inventory inventory, etc.
Product Features
> Highly integrated 2-D decoding structure, anti-fall, seismic;
> Adopt high performance MCU, easily identify all mainstream one-dimensional, two-dimensional bar code;
> 300,000 global exposure camera, automatic exposure, suitable for complex use environment;
> Easily read the above 3MIL bar code to meet the daily scanning requirements;
> Enhanced wireless 2.4G transmission technology, reliable outdoor open transmission distance can reach more than 60 meters, while supporting wired transmission without switching;
> Support wireless Bluetooth communication mode, support HID, SPP, BLE three communication protocols;
> Support a variety of working modes (manual, induction, continuous), can meet the different reading requirements;
> Support synchronous mode that sweep that pass, support storage mode large capacity can store more than 20,000 commodity code;
> Support for online upgrades, custom development, and secondary development.
Performance
| Communication Mode | USB (USB-KBW, USB-COM), wireless 2.4G, wireless Bluetooth |
| Sensor | CMOS |
| Pixel | 300,000 Global, 640 * 480 |
| Reading Precision | ≥3mil/0.076mm（PCS90%,CODE 39） |
| Knowledge of deep reading | 10mm~550mm (different bar code range) |
| Decoding speed | 65CM/S |
| Reading Mode | Manual reading, continuous reading, induction reading |
| Prompt Mode | LED, Buzzer |
| Reading Perspective | H41° * V 31° |
| Test Conditions | CODE39,10mil/0.25mm,PCS90% |
| Reading Angle | Roll: ±360°, Pitch: ±60°, Skew: ±55° |
| Print Contrast | ≥15% |
| Ambient Illumination | Dark surroundings, indoor natural light |
| Code System | 1D:UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Standard 2 of 5(IATA 2 of 5), Codabar (NW-7), MSI, GS1 Data bar (Omnidirectional, Limited, Expanded), China Post, Tepepen, Febraban Brazilian Bank Code, GS1 Composite etc.
2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode , Aztec，HanXin Code, etc. |
Wireless Parameters
| Wireless Communication Mode | Synchronization mode, storage mode |
| Method of Communication | USB(USB-KBW，USB-COM），wireless 2.4G，Wireless Bluetooth (HID, SPP, BLE) |
| Wireless Standard | 2.4GHZ（ISM frequency band）, Bluetooth 4.2 |
| Transmit Distance | ≥60meters 2.4G; 30meters Bluetooth （Open distance ） |
| Storage Capacity | 350Kb（over 20,000 Product code） |
| Battery Capacity | 2000mAh |
| Charging Time | About 4.5 hours(5V@1000mA) |
| Continuous Scan Time | ≥16 Hours |
| Standby Time | ≥4 Weeks |
| Support system | Windows，Mac OS，IOS, Linux，Unix，Android |
Mechanical/Electrical Parameters
| Product Weight | 205g (including wire) |
| Packed Weight | 360g (USB) |
| Appearance Dimension | 175mm L * 72mm W * 100mm H (scanner)
200mm L * 90mm W * 51mm H (Communication base) |
| Packed Dimension | L195mm * W105mm * H80mm |
| Wire Length | 1.5 meters |
| Interface Type | USB (Type B) |
| Working Voltage | DC 5V |
| Current | 220mA (working), 30mA (standby) |
Working Environment
| Working Temperature | 0℃ to 50℃ |
| Storage Temperature | -30℃ to 60℃ |
| Working Humidity | 5% to 95%（Non-Condensing ） |
| Transportation Vibration Test | 10H@125RPM |
Spare Parts List
| Cable | Used for charging and communication with connecting scanner and host. |
| Dongle | Used to transmit data with host. |
| Operation Guide | Used for general settings. |
Note: Different wires are selected according to different interface types.
Depth of Field
| Barcode Type | Barcode Density | Minimum | Maximum |
| Code 39 | 0.1mm(4mil) | 40mm | 75mm |
| Code 39 | 0.25mm(10mil) | 20mm | 200mm |
| Code 39 | 1mm(40mil) | 105mm | 550mm |
| UPC/EAN | 0.33mm(13mil) | 30mm | 260mm |
| QR Code | 20.0mil | 10mm | 165mm |
| Data Matrix | 10mil | 30mm | 100mm |
| PDF 417 | 6.8mil | 20mm | 140mm |
(Testing Conditions: Room Temperature 25℃ Ambient Light Illumination 200LUX,PCS=0.9)
