>Highly integrated one-dimensional decoding structure, anti-fall and anti-vibration;
>Using high-performance MCU, easily identify all mainstream one-dimensional bar codes in the market;
> Easily read barcodes above 4MIL to meet daily scanning needs;
>CCD image technology, can easily read barcodes on paper, printing, plastic and screen.
>Enhanced wireless 2.4G transmission technology, reliable outdoor open transmission distance can reach more than 60 meters, while supporting wired transmission without switching;
>Support multiple working modes (manual, long light, flashing, etc.) to meet different reading needs;
>Support synchronous mode, scan and transfer, support storage mode, large capacity can store more than 20,000 product codes;
>Support online upgrade, custom development and secondary development.
Introduction

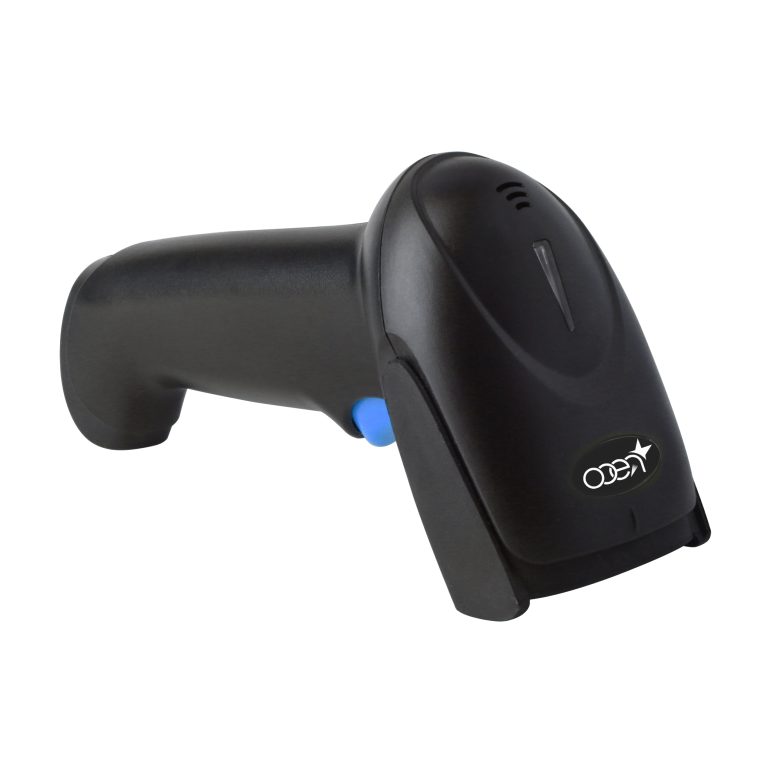

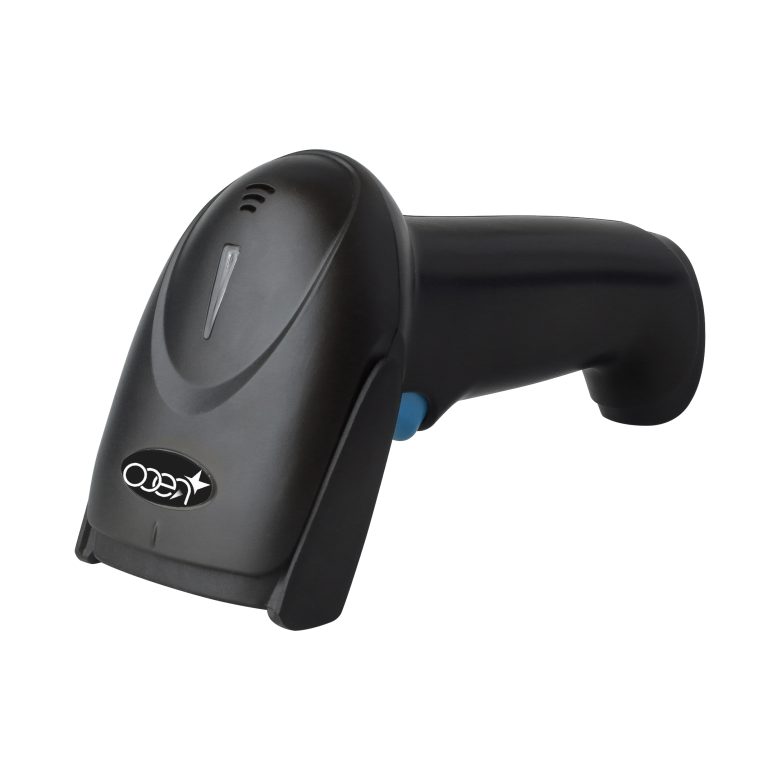

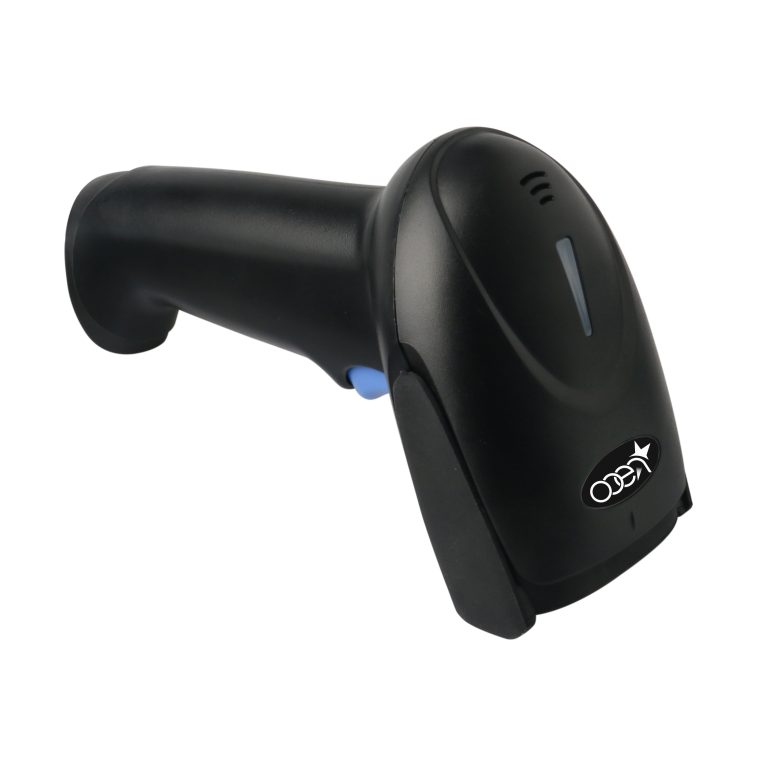

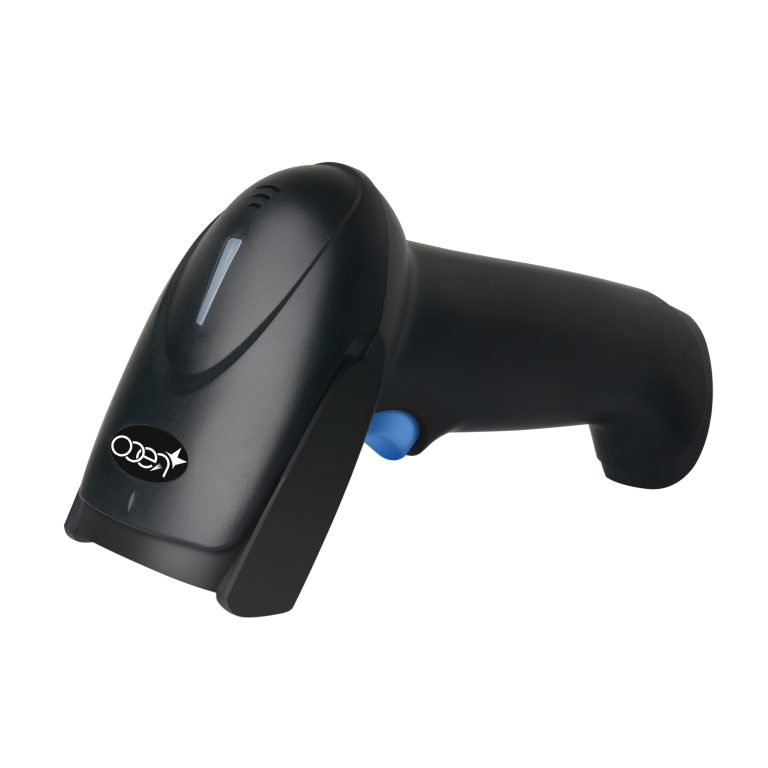

HS2101G-1D is a general-purpose handheld one-dimensional wireless barcode scanner with good reading performance and can easily read barcodes on different media such as paper, commodities, and screens. The product adopts enhanced wireless 2.4G transmission technology, the effective distance of outdoor open environment can reach more than 60 meters, and it can support both wired and wireless transmission methods. It can be mainly used for mobile payment, commodity barcode scanning, inventory counting, etc.
Product Features
>Highly integrated one-dimensional decoding structure, anti-fall and anti-vibration;
>Using high-performance MCU, easily identify all mainstream one-dimensional bar codes in the market;
> Easily read barcodes above 4MIL to meet daily scanning needs;
>CCD image technology, can easily read barcodes on paper, printing, plastic and screen.
>Enhanced wireless 2.4G transmission technology, reliable outdoor open transmission distance can reach more than 60 meters, while supporting wired transmission without switching;
>Support multiple working modes (manual, long light, flashing, etc.) to meet different reading needs;
>Support synchronous mode, scan and transfer, support storage mode, large capacity can store more than 20,000 product codes;
>Support online upgrade, custom development and secondary development.
Performance
| Communication Mode | USB-KBW, Wireless 2.4G |
| Optical system | Linear CCD Sensor |
| Resolution | 1500 |
| Resolution | ≥4mil/0.1mm（PCS90%,CODE 39） |
| Read the depth of field | 45mm~350mm |
| Decoding speed | Up to 300 times/sec |
| Reading Mode | Manual reading, constant light reading, flashing reading, induction mode |
| Prompt Mode | LED, Buzzer |
| Reading angle | Test Conditions：CODE39,10mil/0.25mm,PCS90%
Rotation Roll: ±30°, Pitch: ±60°, Skew: ±60° |
| Print contrast | ≥25% |
| Ambient light | Dark environment, indoor natural light, |
| Code System | UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128， GS1-128，ISBT 128， Code 39，Code 93，Code 11， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Standard 2 of 5（IATA），Codabar（NW-7），Plessey，MSI Plessey，RSS，China Post，etc. |
Wireless Parameters
| Wireless Communication Mode | Synchronous mode, storage mode |
| Communication Mode | Wired USB (USB-KBW, USB-COM), wireless 2.4G |
| Wireless Standard | 2.4GHZ（ISM Frequency Band） |
| Transmit Distance | ≥60meters（Open distance） |
| Storage Capacity | 350Kb（over 20,000 Product code） |
| Battery Capacity | 1200mAh |
| Charging Duration | About 2.5 hours(5V@1000mA) |
| Working Duration | ≥12hours |
| Sleeping Duration | ≥4 Weeks |
| Supported System | Windows，Mac OS，IOS, Linux，Unix，Android |
Mechanical/Electrical Parameters
| Product Weight | About 160g (including wire) |
| Packed Weight | About 270g |
| Appearance Dimension | 150mm L * 70mm W * 95mm H |
| Packed Dimension | L195mm * W105mm * H80mm |
| Wire Length | 1.5 meters |
| Interface Type | USB (B Type) |
| Working Voltage | DC 5V |
| Current | 100mA（WORK） |
Working Environment
| Working Temperature | -20℃ to 50℃ |
| Storage Temperature | -30℃ to 60℃ |
| Working Humidity | 5% to 95%（Non-Condensing ） |
| Transportation Vibration Test | 10H@125RPM |
Spare Parts List
| Cable | Connect the scanner to the host for charging and communication of the scanner |
| Wireless receiver | Connect to the host for data reception of the scanner. |
| Simple operation guide | Used to set the common functions of the bar coder |
Depth of Field
| Barcode Type | Barcode Density | Minimum | Maximum |
| Code 39 | 0.1mm(4mil) | 50mm | 115mm |
| Code 39 | 0.25mm(10mil) | 45mm | 220mm |
| Code 39 | 0.5mm(20mil) | 60mm | 250mm |
| Code 39 | 1.0mm(40mil) | 100mm | 350mm |
| EAN-13 | 0.33mm(13.0mil) | 50mm | 230mm |
(Testing Conditions: Room Temperature 25℃ Ambient Light Illumination 200LUX PCS = 0.9)
